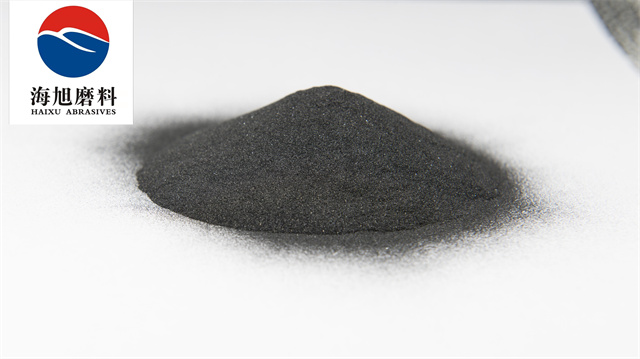

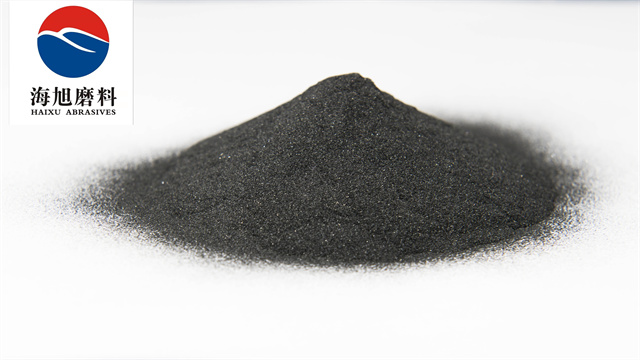

Boron carbide

Boron carbide is a compound that contains boron and carbon, especially B4C; an extremely hard, non-metallic, black crystalline compound or solid solution. Only diamond is harder. In addition to its hardness property, boron carbide has the physical properties of corrosion resistance, heat strength, low specific gravity and high elastic modulus. It is used as an abrasive, neutron absorber for nuclear reactors, and as an alloying agent in composite structural materials.

$2,600.00$3,600.00 / MT

Boron carbide

Boron carbide is a compound that contains boron and carbon, especially B4C; an extremely hard, non-metallic, black crystalline compound or solid solution. Only diamond is harder. In addition to its hardness property, boron carbide has the physical properties of corrosion resistance, heat strength, low specific gravity and high elastic modulus. It is used as an abrasive, neutron absorber for nuclear reactors, and as an alloying agent in composite structural materials.

Chemical Composition

SizeApprox Size(microns)Chemical Composition(%)
B%C%Fe2O3B4C%
F36600-50078-8117-220.2-0.497-99
F40500-42578-8117-220.2-0.497-99
F46425-35578-8117-220.2-0.497-99
F54355-30078-8117-220.2-0.497-99
F60300-25078-8117-220.2-0.497-99
F80212-18078-8117-220.2-0.497-99
F100150-12578-8117-220.2-0.497-99
F120125-10678-8017-220.2-0.496-98
F150106-7578-8017-220.2-0.496-98
F18075-6378-8017-220.2-0.496-98
F23053.0±3.0um77-8017-220.3-0.596-97
F24044.5±2.0um77-8017-220.3-0.596-97
F28036.5±1.5um77-8017-220.3-0.596-97
F32029.2±1.5um76-7917-210.3-0.695-97
F36022.8±1.5um76-7917-210.3-0.695-97
F40017.3±1.0um75-7917-210.4-0.894-96
F50012.8±1.0um76-7918-220.3-0.794-97
F6009.3±1.0um74-7817-210.4-0.992-94
F8006.5±1.0um74-7817-210.4-0.992-94
F10004.5±0.8um75-7818-220.1-0.890-94
F12003.0±0.5um75-7818-220.1-0.890-94
F15002.0±0.4um75-7818-220.1-0.890-94
F20001.2±0.3um75-7818-220.1-0.890-94

Physical Properties

AppearanceBlack powder
Molecular Weight (g/mol.)55.25515
Specific Heat (cal-mol-c)12.5
Knoop Hardness2750
Mohs Hardness9.6
Micro Hardness4950kgf/mm2
Density & phase2.52 g/cm (Solid)
Melting point2350 °C (2623.15 K)
Boiling point>3500 °C (>3773.15 K)
Solubility In WaterInsoluble
Crystal StructureRhombohedral

Application



Boron Carbide is well suited to a variety of industrial applications including:
Abrasives for lapping and ultrasonic cutting
Anti-oxidant in carbon-bonded refractory mixes
Armor
Nuclear applications such as reactor control rods and neutron absorbing shielding
Wear parts such as blasting nozzles, wire-drawing dies, powdered metal and ceramic forming dies, thread guides

TDS not uploaded

MSDS not uploaded
